OMG-OCSMP-MBA400 Exam Practice Test Instant Access

Question 1

Choose the correct answer

Which statement is true regarding a typical model-based systems engineering methodology?

AThe activities in a typical systems engineering methodology are applied iteratively

BThe activities in a typical systems engineering methodology are applied sequentially.

CThe activities in a typical systems engineering methodology can be performed in any order

DThe activities in u typical systems engineering methodology work just as well for specialty engineering activities

Answer : A

A systems engineering methodology is a collection of related processes, methods, and tools that support the discipline of systems engineering in a specific context. The activities in a typical systems engineering methodology are applied iteratively, meaning that they are repeated and refined until a satisfactory solution is achieved. The activities are not applied sequentially, meaning that they are not performed in a fixed order without revisiting previous steps. The activities cannot be performed in any order, because they have logical dependencies and prerequisites. The activities do not work just as well for specialty engineering activities, because they may require different processes, methods, and tools

Question 2

Choose the correct answer

A company is executing a large distributed engineering project. More than a dozen engineers are contributing to the system model, working from different locations spread across three time zones The lead engineer has decided that it is essential to maintain a single model. The department director has expressed concern that the project may have trouble employing its engineers productively while still maintaining configuration control of this common model.

Which configuration management strategy is likely to be most successful*?

AUse a centralized repository for the model files Allow only engineers in the eastern-most time zone to upload changes to the model files in the mornings, and the western engineers in the afternoons. Either can download and view the model files at any time. This will assure maximum productivity while minimizing the possibility of collisions

BUse a configuration management tool to manage model elements. Assign ownership of model elements at the package level- Only the owner of a package may make changes to elements in that package Note that each relationship between model elements must be
contained within a single package

CUse a configuration management tool to manage model elements. Allow packages to be checked out by any user for editing, which locks the elements therein contained Packages may be viewed in read-only mode by any user at any time All model users receive alerts when a package they are viewing has been modified and checked-in. and changes are highlighted Packages may not remain checked out overnight

DCo-locate the modeling team Trying to maintain configuration of a model across a distributed team is extremely difficult and may not succeed

Answer : C

This configuration management strategy is likely to be most successful because it allows the engineers to work on the system model collaboratively and concurrently, while maintaining configuration control and avoiding conflicts. A configuration management tool is a software tool that helps manage changes to model elements and track their versions and history. A package is a grouping mechanism that can contain any kind of model element, such as diagrams, blocks, activities, etc. By using a configuration management tool, the engineers can check out packages for editing, which locks the elements in that package and prevents other users from modifying them. The engineers can also view packages in read-only mode by any user at any time, which allows them to see the latest version of the model without affecting it. The engineers can also receive alerts when a package they are viewing has been modified and checked-in by another user, and see the changes highlighted. This way, the engineers can stay informed and synchronized with the model updates. By not allowing packages to remain checked out overnight, the engineers can avoid holding up the work of other users who need to access or modify those packages. Reference: https://www.omg.org/ocsmp/ocsmp-adv-exam.htm https://sysml.org/tutorials/sysml-diagram-tutorial/

Question 3

Choose the correct answer

Athe import and export of only SysML diagrams from one tool to another

Bthe import and export of only SysML model data from one tool to another

Cthe import and export of both SysML diagrams and model data from one tool to another

Dthe ability to perform model checking to verify model conformance

Answer : C

If a systems modeling tool conforms to the XMI specification and includes the XMI representation of the UML Profile for SysML and the XMI representations of Model Libraries defined by SysML, the tool provides the import and export of both SysML diagrams and model data from one tool to another. XMI (XML Metadata Interchange) is a format specification that enables the interchange of objects and models through an XML formatted file. It is based on a metamodel that defines the abstract syntax and semantics of the model elements. By conforming to the XMI specification, a tool can serialize and deserialize SysML models in terms of XML elements and attributes. The tool can also include the XMI representation of the UML Profile for SysML, which defines the mapping of SysML concepts to UML concepts, and the XMI representations of Model Libraries defined by SysML, which provide predefined types and units for SysML models. This way, the tool can import and export both SysML diagrams and model data from one tool to another, ensuring consistency and interoperability. Reference: https://www.omg.org/ocsmp/ocsmp-adv-exam.htm https://www.omg.org/spec/XMI/2.5.1/About-XMI/

Question 4

Choose the correct answer.

A project is evaluating several modeling tools which comply in vanous degrees to SysML abstract and concrete syntax The customer will allow some deviation from full compliance, as long as technical risk is minimized.

Which tool characteristics are required for this project?

Afull compliance with abstract syntax, and limited deviations from concrete syntax

Bfull compliance with concrete syntax, and limited deviations from abstract syntax

Climited deviations from abstract and concrete syntax

Dfull compliance with both abstract and concrete syntax, nothing less is adequate

Answer : A

This tool characteristic is required for this project because it ensures that the modeling tool follows the SysML abstract syntax, which defines the metamodel elements and their semantics. The abstract syntax is essential for ensuring consistency and interoperability between different tools and models. The concrete syntax, which defines the notation and presentation of the elements, can have some deviations as long as they do not affect the meaning or interpretation of the model. For example, a tool can use different colors or shapes for some elements without changing their semantics. Reference: https://www.omg.org/ocsmp/ocsmp-adv-exam.htm https://sysml.org/docs/specs/OMG_SysML_1.6.pdf

Question 5

Choose the correct answer

A system engineer is designing an algorithm that governs the behavior of his system-of-interest He is using SysML for modeling system behavior and related allocations, and plans to auto-generate MATLAB code for algorithm execution and testing.

Which modeling approach should the engineer use?

Ause block constructs to represent the algorithm, and create use cases for each of the functions used in the algorithm

Buse activity constructs to represent the algorithm and its functions, and create actions to represent the use of functions in the algorithm

Cuse block constructs to represent the algorithm and its functions, and create part properties to represent the use of the functions in the algorithm

Duse activity constructs to represent the algorithm and its functions, and create containment relationships to represent the use of functions in the algorithm

Euse package constructs to represent the algorithm and its functions, and create containment relationships to represent the use of functions in the algorithm

FCode generation is outside the scope of SysML. so the system engineer should use UML

Answer : B

This modeling approach should be used by the system engineer because it allows him to capture the behavior of his system-of-interest using SysML activities and actions. An activity is a behavior that specifies the coordination of actions. An action is a behavior that specifies a transformation or processing of data. By using activities and actions, the engineer can model the algorithm and its functions in terms of inputs, outputs, control flows, object flows, parameters, etc. He can also use allocations to relate the activities and actions to other model elements, such as blocks or requirements. This way, he can generate MATLAB code from his SysML model for execution and testing. Reference: https://www.omg.org/ocsmp/ocsmp-adv-exam.htm https://sysml.org/tutorials/sysml-diagram-tutorial/

Question 6

Choose the correct answer

A bank manager and his core team want to consolidate internal processes, detect conflicts among processes, and improve customer experience. The core team includes the lead person from each of the process areas (such as transactions, customer management, and marketing). The manager wants to architect the overall system processes based on the following.

(1) Relationships among the internal processes should be clearly identifiable and managed.

(2) The core team members should be able to improve their processes simultaneously.

(3) The architecture should aid visualization and analytics

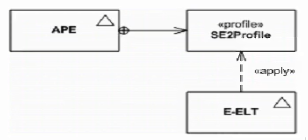

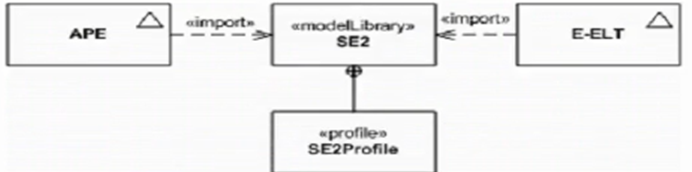

Which model organization approach would be most efficient?

Acreate a SysML model for each of the core processes and for each relationship between processes

Bcreate a SysML model that contains only one diagram showing all the core processes and their relationships

Ccreate a SysML model for each of the core processes, and manage relationships between processes in a spreadsheet

Dcreate a SysML model that contains a package for each of the core processes, and a package for the overall consolidated process and related relationships

Ecreate a SysML model that contains a package for each of the core processes, a package for each of the relationships between processes, and a package for the overall consolidated process

Answer : E

This model organization approach would be most efficient because it allows the bank manager and his core team to modularize and structure their system processes using SysML packages. A package is a grouping mechanism that can contain any kind of model element, such as diagrams, blocks, activities, etc. By creating a package for each of the core processes, the team members can work on their own processes independently and concurrently. By creating a package for each of the relationships between processes, the team can identify and manage the dependencies and interactions among the processes. By creating a package for the overall consolidated process, the team can have a holistic view of the system and perform visualization and analytics using SysML diagrams and parametrics. Reference: https://www.omg.org/ocsmp/ocsmp-adv-exam.htm https://sysml.org/tutorials/sysml-diagram-tutorial/

Question 7

Choose the correct answer

The lead systems engineer on a project has identified a set of Key Performance Parameters (KPPs) that need to be evaluated both on a periodic basis during development, and during acceptance for every design change. Many of these KPPs are expressed In complex, interrelated differential equations The analysis team has identified appropriate numerical techniques for solving these equations and expressed them in a popular analysis tool.

The lead system modeler and methodologist must ensure that the architecture and design captured in the SysML system model are continuously and accurately reflected In the KPP calculations.

Which strategy is likely to be most successful in accomplishing this?

ATask the analysis learn with recasting each of the KPP equations as constraint blocks and parametric models directly in SysML and linking the resulting parameters to value properties of current system model elements Keeping all information in the same model is the only way to guarantee the consistency the lead engineer has asked for

BList the parameters used to evaluate the KPPs in a spreadsheet file. Use the SysML modeling tool's inherent capability to link appropriate value properties to cells in this spreadsheet Task the analysis team with modifying their analysis routines to accept parameters as an input vector from this spreadsheet. Ensure that the spreadsheet is updated from the system model prior to each update of the KPP calculations

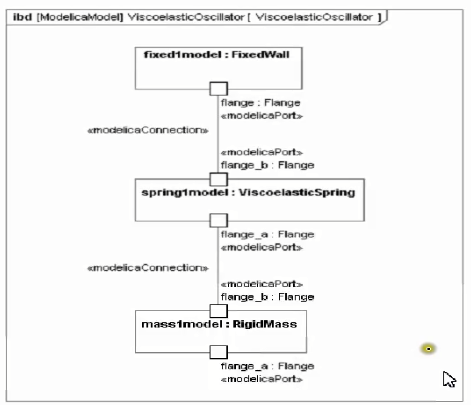

CWork with the analysis team to partition the KPP evaluation model into manageable, reusable subroutines Develop constraint blocks within the SysML model to represent these subroutines, exposing their parameters. Use these new constraint blocks to build a parametric model that ties the KPP evaluation directly to system model element value properties. Leverage available bridging software to link this parametric model to the evaluation subroutines executing in the external analysis tool, and re-evaluate the KPPs on an as-needed basis

DUse activity and/or state models to accurately model the flow of data to numerically solve the KPP evaluation equations Ensure that the analysis team validates these behavior models Bind each relevant value property within the system model to an activity parameter or state variable such that the KPP evaluation model accurately reflects how the KPPs are derived. Next, use code generation capability inherent in the SysML tool to generate and compile the KPP evaluation routines Recompile and run these routines as needed to update KPP estimates

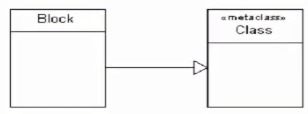

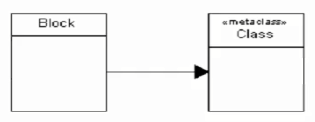

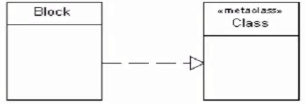

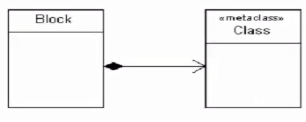

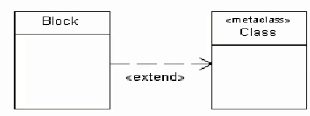

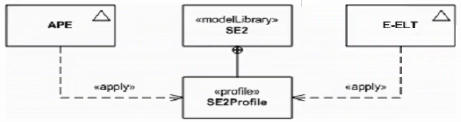

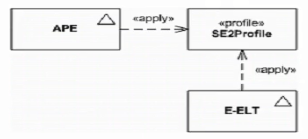

Answer : B
