Juniper JN0-637 Security, Professional JNCIP-SEC Exam Practice Test

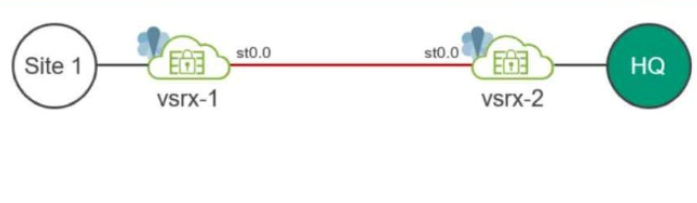

Answer : D

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

Understanding the Problem:

A CoS-based VPN has been configured but is not functioning correctly.

The exhibit shows that under the class-of-service configuration, six forwarding classes are defined.

Forwarding Classes in the Exhibit:

best-effort

ef-class

af-class

network-control

res-class

web-data

Juniper CoS-Based VPN Limitations:

Maximum Number of Forwarding Classes: In CoS-based VPNs (Layer 3 VPNs), there is a limitation on the number of forwarding classes that can be used.

Supported Forwarding Classes: Only up to four forwarding classes are supported in an L3VPN for CoS purposes.

Additional Reference:

Juniper TechLibrary:

'Configuring Class of Service for MPLS VPNs' - Discusses CoS considerations and limitations in MPLS L3VPN deployments.

Source: Juniper TechLibrary - CoS for VPNs

Juniper Networks Day One Book:

'Deploying MPLS Layer 3 VPNs' - Provides insights into CoS limitations and best practices for VPN deployments.

Juniper Networks Documentation:

'For Layer 3 VPNs, the maximum number of forwarding classes supported is four. If you configure more than four forwarding classes, CoS functionality might not work as expected.'

Source: Juniper TechLibrary - Class of Service Limitations in VPNs

Issue Identification:

The VPN is not functioning correctly because it exceeds the maximum number of supported forwarding classes for a CoS-based VPN.

Solution:

Option D: You must delete one forwarding class.

By reducing the number of forwarding classes to four or fewer, the CoS-based VPN will comply with the limitations and function correctly.

Why Other Options Are Incorrect:

Option A: You must change the loss priorities of the forwarding classes to low.

Changing loss priorities does not affect the limitation on the number of forwarding classes.

The issue is not related to loss priority settings but to the number of forwarding classes.

Option B: You must change the code point for the DB-data forwarding class to 10000.

There is no forwarding class named DB-data in the exhibit.

Changing a code point does not address the issue of exceeding the maximum number of forwarding classes.

Option C: You must use inet precedence instead of DSCP.

Switching from DSCP to IP Precedence does not resolve the issue of having too many forwarding classes.

The limitation on the number of forwarding classes remains the same regardless of the classification method used.

Conclusion:

To resolve the issue with the CoS-based VPN not functioning correctly due to exceeding the maximum number of forwarding classes, you must delete forwarding classes to reduce the total number to four or fewer.

Answer : B, C

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security Reference

When two networks with overlapping IP address spaces need to communicate, Network Address Translation (NAT) is required to translate the IP addresses so that they become unique across the combined network. In this scenario, both the local network and the new branch office use the same subnet: 192.168.100.0/24. To enable communication without IP conflicts, we need to translate the overlapping addresses to unique ones.

Understanding the Problem:

Local Network (Office A): 192.168.100.0/24

Branch Office (Office B): 192.168.100.0/24

Objective: Allow communication between Office A and Office B despite overlapping IP ranges.

Solution Overview:

To resolve the overlapping IP addresses, we can use Static NAT to create a one-to-one mapping between the overlapping IP addresses and a unique IP range. This way, when packets traverse the network boundary, their IP addresses are translated to a non-overlapping range, avoiding conflicts.

Option B and Option C implement Static NAT to resolve the issue:

Option B (At Office A):

Translates destination addresses from 192.168.200.0/24 to 192.168.100.0/24.

This allows Office B to reach Office A's overlapping network by targeting a unique IP range (192.168.200.0/24).

Option C (At Office B):

Translates destination addresses from 192.168.210.0/24 to 192.168.100.0/24.

This allows Office A to reach Office B's overlapping network by targeting a unique IP range (192.168.210.0/24).

Detailed

1. Static NAT Configuration at Office A (Option B):

Configuration:

[edit security nat static]

user@OfficeA# show rule-set From-Office-B {

from interface ge-0/0/0.0;

rule 1 {

match {

destination-address 192.168.200.0/24;

}

then {

static-nat {

prefix { 192.168.100.0/24; }

}

}

}

}

from interface ge-0/0/0.0;: Specifies the interface through which the traffic is received.

Matching Traffic:

destination-address 192.168.200.0/24;: Matches packets destined for 192.168.200.0/24.

Action:

static-nat { prefix { 192.168.100.0/24; } }: Translates the destination address to 192.168.100.0/24.

Result:

Office B sends packets to 192.168.200.0/24, which are translated to 192.168.100.0/24 upon arrival at Office A.

Juniper Networks Documentation: 'Configuring Static NAT'

2. Static NAT Configuration at Office B (Option C):

Configuration:

[edit security nat static]

user@OfficeB# show rule-set From-Office-A {

from interface ge-0/0/0.0;

rule 1 {

match {

destination-address 192.168.210.0/24;

}

then {

static-nat {

prefix { 192.168.100.0/24; }

}

}

}

}

from interface ge-0/0/0.0;: Specifies the interface through which the traffic is received.

Matching Traffic:

destination-address 192.168.210.0/24;: Matches packets destined for 192.168.210.0/24.

Action:

static-nat { prefix { 192.168.100.0/24; } }: Translates the destination address to 192.168.100.0/24.

Result:

Office A sends packets to 192.168.210.0/24, which are translated to 192.168.100.0/24 upon arrival at Office B.

Juniper Networks Documentation: 'Configuring Static NAT'

Why Options A and D are Incorrect:

Option A and Option D use Source NAT, which is typically used for translating the source IP address of outgoing traffic.

Source NAT with interface-based translation may not resolve overlapping IP issues effectively because it doesn't provide a one-to-one mapping of the overlapping addresses.

In scenarios with overlapping networks, Static NAT is preferred as it allows for consistent and predictable address translation, essential for two-way communication.

Key Juniper Concepts:

Static NAT:

Provides a one-to-one mapping between local and global addresses.

Useful for scenarios where bidirectional communication is required.

Source NAT:

Typically used for translating private IP addresses to public IP addresses for outbound traffic.

Interface-based Source NAT translates the source IP to the IP address of the egress interface.

Not ideal for resolving overlapping IP spaces in bidirectional communication.

Additional Reference:

Juniper TechLibrary:

'Understanding NAT in SRX Series Devices'

'Configuring NAT for Overlapping Networks'

Juniper Forums and Knowledge Base Articles:

Discussions on resolving overlapping IP address spaces using Static NAT.

Conclusion:

By implementing Static NAT configurations as shown in Options B and C, both offices can effectively communicate despite having overlapping IP address spaces. Static NAT ensures that IP addresses are uniquely translated, avoiding conflicts and enabling seamless connectivity between the two networks.

Answer : D

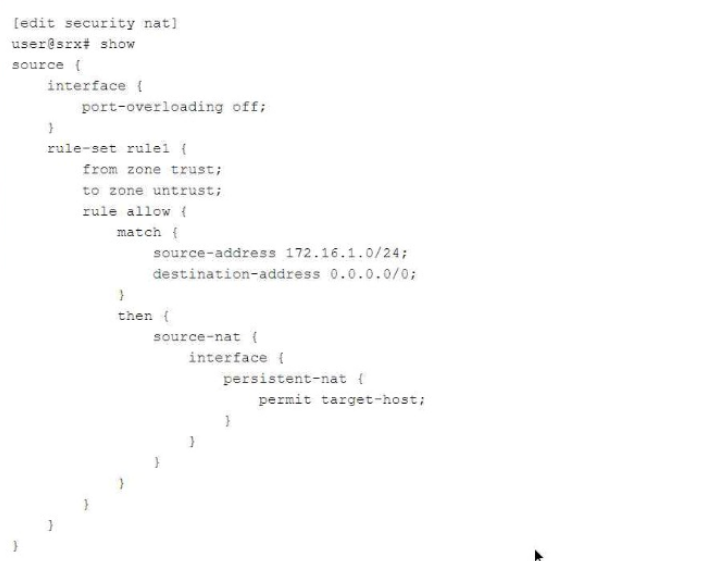

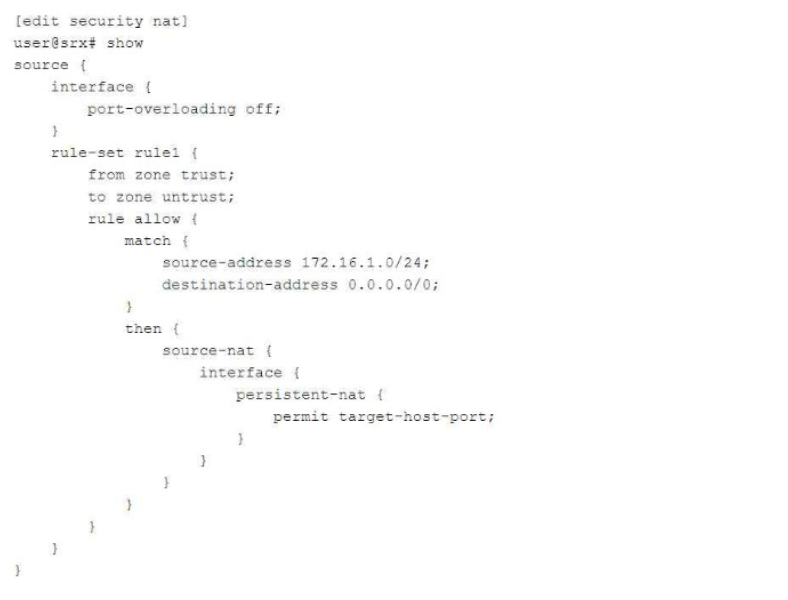

The command show security nat source persistent-nat-table all provides a comprehensive view of all entries in the persistent NAT table, enabling administrators to monitor and manage resource exhaustion. Refer to Juniper NAT Monitoring Guide for more.

In Junos OS, when persistent NAT is configured, a binding table is created to keep track of NAT sessions and ensure that specific hosts are allowed to initiate sessions back to internal hosts. To check if the persistent NAT binding table is full or exhausted, the correct command must display the entire table.

Correct Command (D):

The command show security nat source persistent-nat-table all will display the entire persistent NAT binding table. This allows you to check whether the table is exhausted or if there is space available for new persistent NAT sessions.

Incorrect Options:

Option A: The command show security nat source persistent-nat-table summary provides a summary view but does not give detailed insights into whether the table is exhausted.

Option B and Option C: These commands deal with general NAT source summaries or pools, which are not related specifically to persistent NAT bindings.

Juniper Reference:

Juniper Persistent NAT Documentation: Describes the persistent NAT binding table and the commands used to monitor its status.

Answer : D

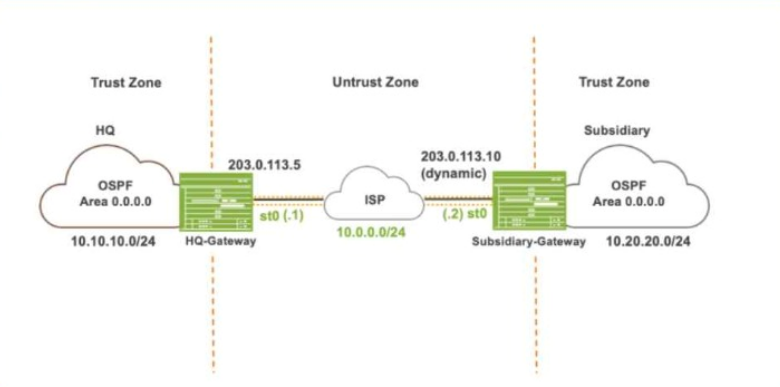

Aggressive mode is required when an IP address is dynamically assigned, such as through DHCP, as it allows for faster establishment with less identity verification. More details are available in Juniper IKE and IPsec Configuration Guide.

The configuration shown in the exhibit highlights that the RemoteSite1 SRX Series device is using DHCP to obtain an IP address for its external interface (ge-0/0/2). This introduces a challenge in IPsec VPN configurations when the public IP address of the remote site is not static, as is the case here.

Aggressive mode in IKE (Internet Key Exchange) is designed for situations where one or both peers have dynamically assigned IP addresses. In this scenario, aggressive mode allows the devices to exchange identifying information, such as hostnames, rather than relying on static IP addresses, which is necessary when the remote peer (RemoteSite1) has a dynamic IP from DHCP.

Correct Action (D): Changing the IKE policy mode to aggressive will resolve the issue by allowing the two devices to establish the VPN even though one of them is using DHCP. In aggressive mode, the initiator can present its identity (hostname) during the initial handshake, enabling the VPN to be established successfully.

Incorrect Options:

Option A: Changing the external interface to st0.0 is incorrect because the st0 interface is used for the tunnel interface, not for the IKE negotiation.

Option B: Changing to IKE version 2 would not resolve the dynamic IP issue directly, and IKEv1 works in this scenario.

Option C: Changing the IKE proposal set to basic doesn't address the dynamic IP challenge in this scenario.

Juniper Reference:

Juniper IKE and VPN Documentation: Provides details on when to use aggressive mode, especially when a dynamic IP address is involved.

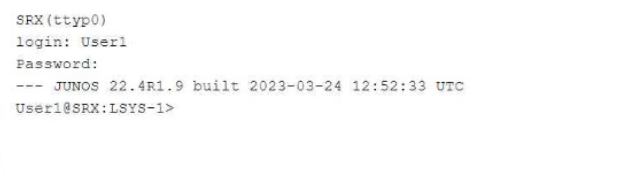

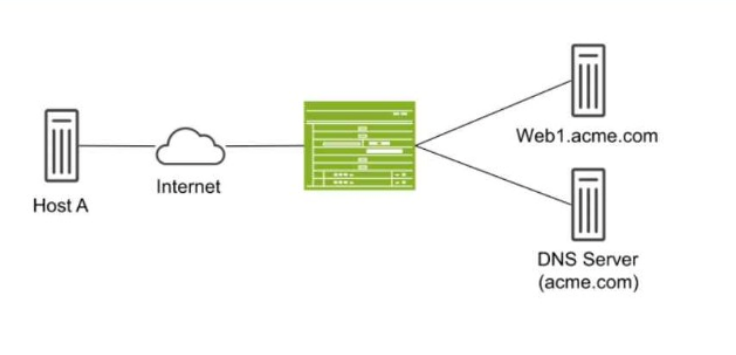

Answer : B

Answer : A, C, D

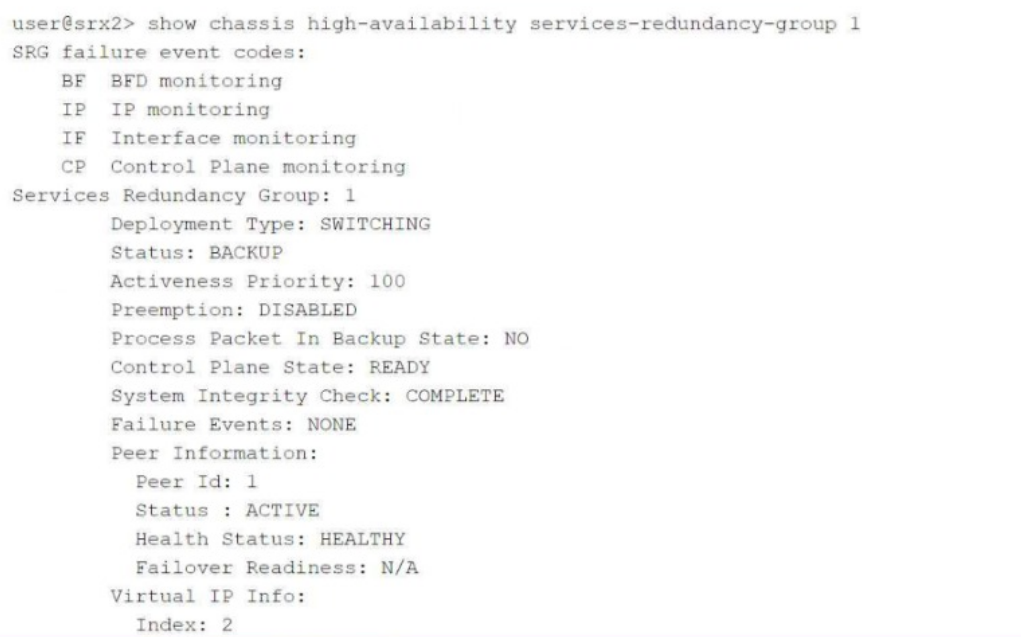

Referring to the exhibit for a multinode HA environment, we can conclude the following about the HA setup:

Two Services Redundancy Groups (Correct: Option A):

The output shows the status of SRG 0 and SRG 1, confirming that there are two services redundancy groups in the HA configuration.

Node 1 Hosting SRG 1 (Correct: Option C):

The exhibit indicates that Node 1 is currently active for SRG 1. According to the configuration, Node 1 will continue to host SRG 1 unless it becomes unavailable.

Session State Synchronization (Correct: Option D):

In this HA setup, session state synchronization is enabled between the two nodes. This ensures that sessions remain active and seamless failover can occur if one node fails.

Juniper Reference:

Juniper HA Documentation: Provides details on multinode HA setups, SRG configurations, and session synchronization.

Answer : A

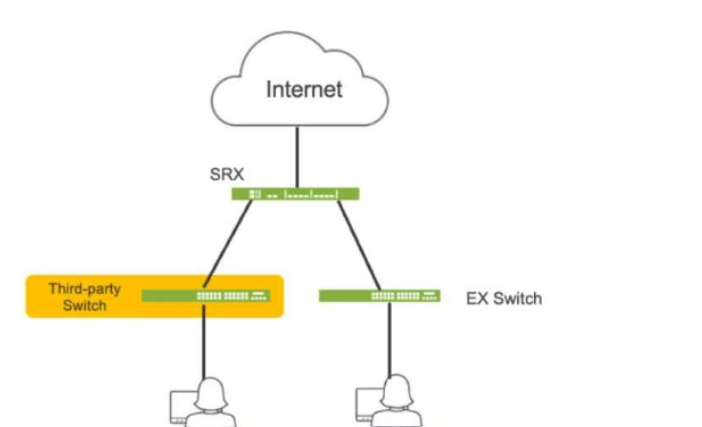

Policy Enforcer interacts with other network elements like EX switches to enforce blocking of infected hosts based on threat intelligence from ATP Cloud and other sources. For more information, refer to Juniper Policy Enforcer Documentation.

In a Juniper automated threat mitigation setup involving Security Director, Policy Enforcer, Juniper ATP Cloud, SRX Series, and EX Series switches, the Policy Enforcer is the component responsible for blocking infected hosts. The role of each component is as follows:

Policy Enforcer (Correct: Option A):

Policy Enforcer receives threat intelligence from Juniper ATP Cloud and instructs SRX devices and EX Series switches to block or quarantine infected hosts. Policy Enforcer pushes policies to these devices to enforce the mitigation actions.

Security Director (Incorrect):

Security Director provides centralized management and visibility but does not directly enforce policies.

Juniper ATP Cloud (Incorrect):

Juniper ATP Cloud is responsible for analyzing threats and providing intelligence but does not take direct mitigation actions.

EX Series Switch (Incorrect):

EX Series switches can enforce the policy pushed by Policy Enforcer but are not responsible for deciding which hosts to block.

Juniper Reference:

Juniper ATP Cloud and Policy Enforcer Documentation: Details the roles of each component in the automated threat mitigation architecture.
