HP HPE6-A69 Exam Practice Test Instant Access

Question 1

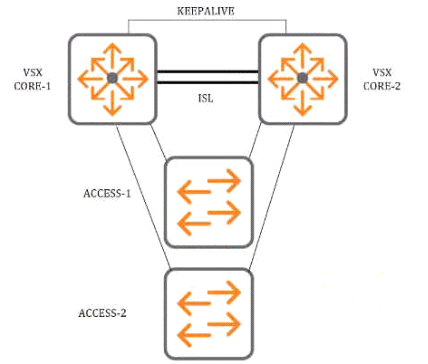

Refer to the exhibit.

A customer has implemented this ArubaOS-CX solution. NetEdit is not present. After a while, the secondary node of the VSX-cluster fails. What is the correct procedure to replace the failed node as quickly as possible?

AReplace the failed unit, boot up the new node without connecting cables, upgrade firmware and configure as secondary vsx node connect iSl and wart for VSX to synchronize After successful recovery, reconnect the remaining cables.

BReplace the failed unit, boot up the new node without connecting cables, upgrade firmware, and restore and save config Shutdown all ports, reconnect the correct cables, and enable all ports

CReplace the failed unit, connect the correct cables, boot up the new node in recovery mode, upgrade firmware and restore, and save config Then, reboot and wait for VSX to synchronize.

DReplace the failed unit, connect the correct cables, boot up the new node and wait for VSX to synchronize configuration and firmware.

Answer : A

Question 2

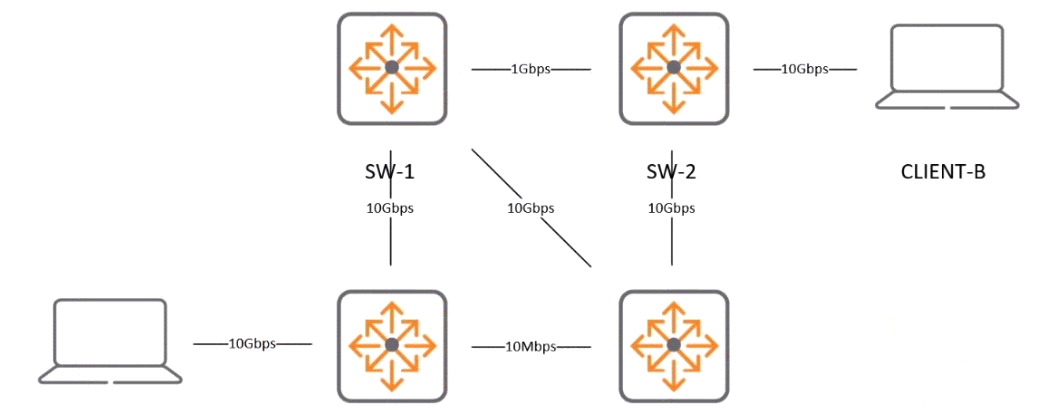

A customer would like to utilize some ArubaOS-CX 6300M switches to perform OSPF routing.

All ports are routed, and ECMP is enabled, with other default parameters for OSPF. What will be the result of traffic sent from CLIENT-A to CUENT-B?

ATraffic will be SW3 -> SW-4 -> SW-2.

BTraffic win be SW3 -> SW-1 -> sw-2.

CTraffic will be SW3 -> SW-1 -> sw-4 -> SW-2

DTraffic will be SW3 -> SW-1 -> Sw-2 & SW3 -> SW-4 -> SW-2

Answer : C

Question 3

An administrator has identified a denial of service attack that is stressing the management processor on the switch. Which actions can be applied to CoPP to mitigate the issue? (Select two.)

ASet the processing priority

BCreate a policy that matches the payload of GRE traffic.

CRegulate traffic from the OOBM Ethernet port

DApply multiple active polices for the classes of traffic

Answer : C, D

Question 4

An administrator is utilizing the orchestration capabilities of NetEdit. What are the two plan types that can be created'' (Select two.)

Configuration management plan

AFirmware plan

BFirmware plan

CDeployment plan

DConfiguration plan

Answer : A, B

Question 5

(Scenarios may contain multiple errors which may or may not impact the solution)

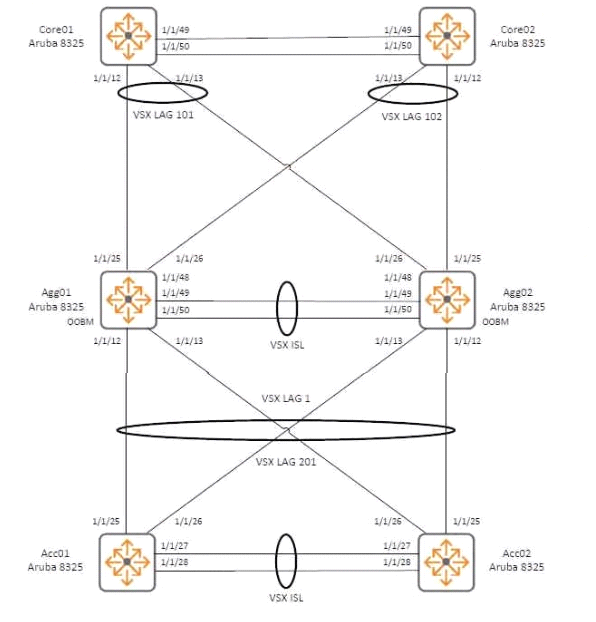

Refer to the Exhibit.

An engineer has attempted to configure two pairs of switches m the referenced configuration it Is required to implement

Multi-Chassis Link Aggregation for each pair of switches

The ports of the Aruba 8325 switches used for Agg01 and Agg02 are populated as follows

The configuration includes:

There is an error message stating "mismatched group speed" What should you add to the configuration to correct the error?

A'system Interface-group 1 speed I0g'

B'allow-unsupported-transceiver

C'speed 10-full' under interfaces 1/1/12 and 1/1/13

D'speed 40-full' under interfaces 1/1/49 and 1/1/50

Answer : C

Question 6

(Scenarios may contain multiple errors which may or may not impact the solution )

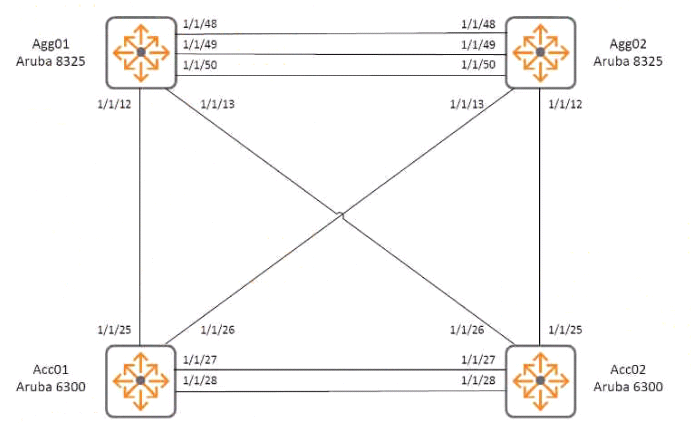

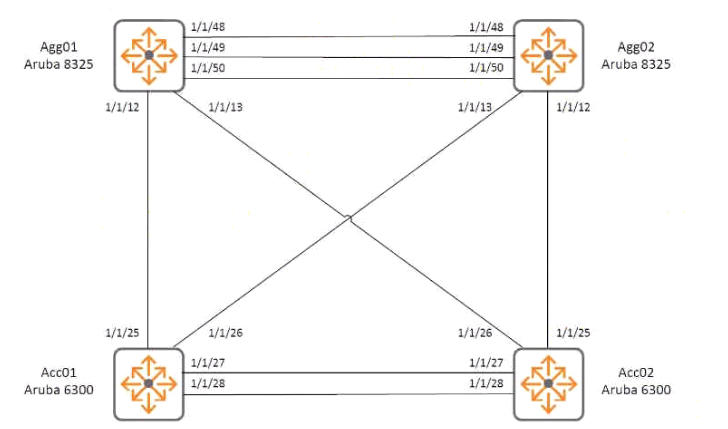

Refer to the exhibit.

An engineer has attempted to configure two pairs of switches in the referenced configuration It is required to implement VSX at the aggregation layer

The pons of the ArubaOS-CX 8325 switches used for Agg01 and Agg02 are populated as follows:

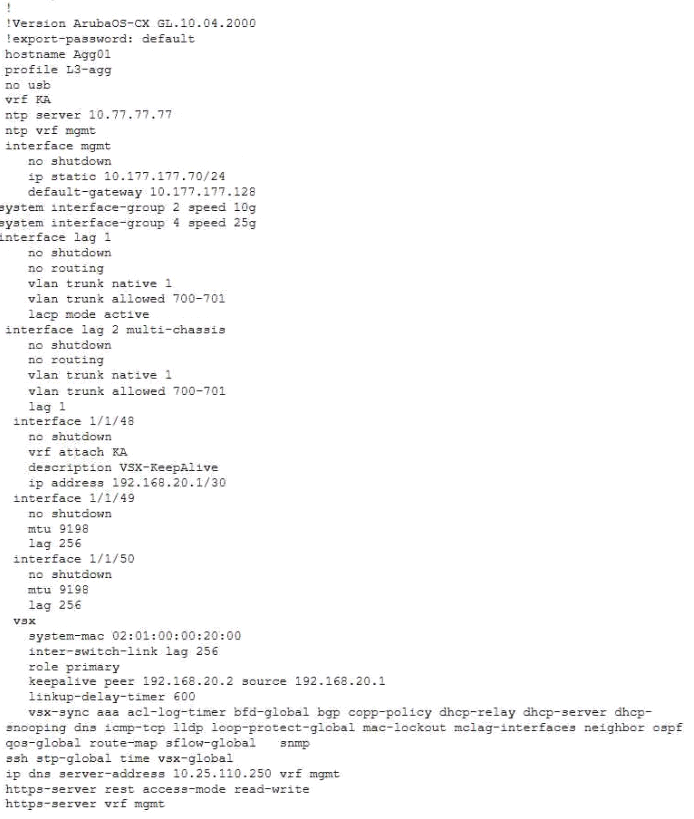

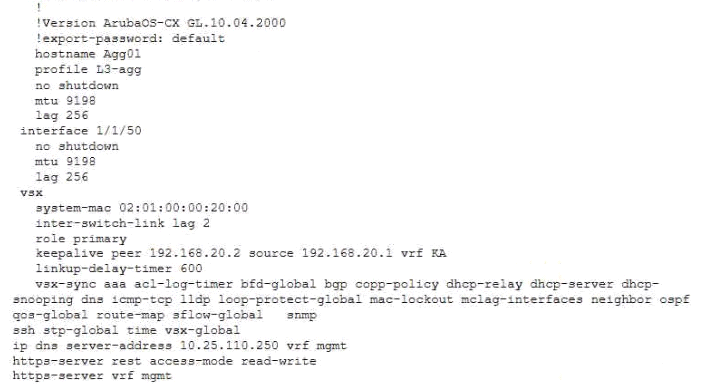

The configuration of switch AGG01 includes

The VSX cluster is not forming. Which modification should you make to resolve the error condition?

AModify the system interface-group 4 speed tOg command change '25g' to '10g'

BModify the keepalive peer 192.168 20.2 source 192 168.20 1 command, changing 'vrf KA' to 'vrf mgmt'

CEdit the vsx-sync command, adding 'keep-alive'

DModify the vsx definition, changing 'inter-switch-link lag 2' to' inter-switch-link lag 256'

Answer : A

Question 7

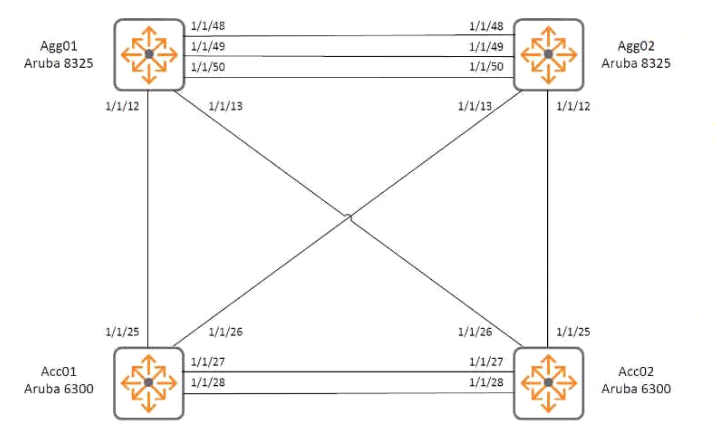

(Scenarios may contain multiple errors which may or may not Impact the solution > Refer to the exhibit.

An engineer has attempted to configure two pairs of switches in the referenced configuration it is required to implement VSX keep-alive at the aggregation layer.

The ports of the ArubaOS-CS 8325 switches used for Agg01 and Agg02 are populated as follows:

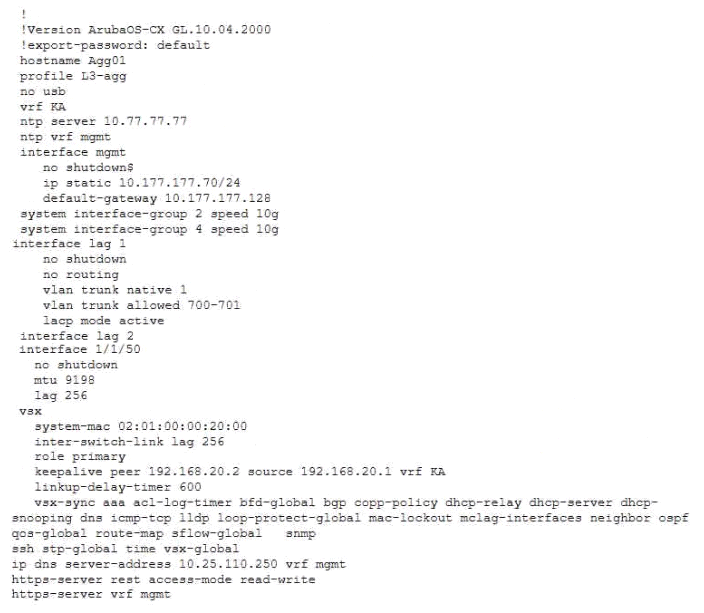

The configuration of switch AGG01 includes:

VSX keep-alive is not working. Which modification should you make lo resolve the error condition?

AEdit interface 1/1/48, adding the command 'vpn-instance KA'

BModify the Interface lag 2 command, removing 'multi-chassis'

CModify the Keepalive peer 192.168.20.2 source 192 168.20.1 command, adding 'vrf KA'

DEdit the vsx-sync command, adding 'keep-alive'

Answer : B

HPE6-A69 Aruba Certified Switching Expert Written Exam Practice Test
