HP HPE0-S60 Exam Practice Test Instant Access

Question 1

Your customer has the following HPE Synergy setup:

- 15 HPE Synergy 12000 frames with 50Gb connectivity to each server port

- 2 HPE Composer 2 modules

- 15 HPE D3940 Storage Modules, one per frame

- 2 HPE 12Gb SAS switches per frame

Which statement about this setup is true?

AThe customer must create at least five logical enclosures for this setup.

BTo manage 15 frames, additional HPE Composers are required.

CThe customer can install up to 12 HPE Synergy 480 compute nodes per frame.

DIf properly cabled, any compute node can access any HPE D3490 storage module

Answer : A

Question 2

In the past a customer experienced a networking issue where network ports went down and came back up in quick succession.

Which HPE Virtual Connect SE 100 GD F32 Module for HPE Synergy feature can be configured to disable such ports?

APause flood protection

BsFlow

CStorm control

DPort flap protection

Answer : B

Question 3

Your customer wants to add a second HPE Synergy frame to an existing logical enclosure Based on a single HPE Synergy frame. The customer wants to use a highly available master setup.

Which procedures should De performed during the expansion process? (Select two.)

ACreate a new logical interconnect group and enclosure group for two frames setup

BCreate a new logical enclosure based on both HPE Synergy frames.

CRe-parent an existing enclosure group to the new logical interconnect group.

DModify an existing logical interconnect to include second HPE Synergy frame.

EMove one of the master modules to the appropriate interconnect bay in the second frame.

Answer : B, D

Question 4

Your customer added a new Ethernet network in HPE Oneview mat is used to manage their HPE Synergy platform.

When the customer tries to connect one of the compute nodes to this network through the server profile, this network is not available.

What must be done to fix this issue?

ACheck the Logical Enclosure settings and verify if the maximum number of networks allowed for this LE is reached.

BTo make this network available to use in the server profile, the customer must enable the Smart Link feature within network definition.

CThe newly created network must be added to the uplink set within the LIG, and Logical interconnect configuration must be updated from the LIG.

DCheck within the server profile which server hardware is used and perform the Refresh operation on this compute node to get the latest adapter information.

Answer : C

Question 5

Your customer has 6 logical enclosures spanning 18 HPE Synergy frames. The customer needs to add one more logical enclosure based on 5 HPE Synergy frames

How will this change impact the customer environment?

AThe customer can add a new logical enclosure to the existing setup because the maximum number of logical enclosures in a single management ring is not reached.

BThe customer has to expand the management ring capacity either by adding HPE Composer 2 modules or adding memory to reach 128GB per module.

CThe customer has to create a new management ring for new logical enclosure because the maximum number of frames m a single management ring is reached.

DThe customer can add a new logical enclosure to an existing setup once all required licenses are added lo HPE OneView and associated with the new frames.

Answer : A

Question 6

Your customer plans to deploy HPE OneView for VMware vCenter Server together with HPE Storage Integration Pack for VMware vCenter. The customer wants to use them to manage HPE Synergy Gen10 compute modules. HPE ProLiant Gen 10 servers and an MSA array.

Which statement about compatibility of the existing environment with the planned software components is true?

ABoth HPE Synergy Gen10 full-height compute module plugins will require a license

BHPE OneView for VMware vCenter Server does not support standalone HPE ProLiant servers

CTo use the required plugins HPE ProLiant Gen10 systems must be managed using HPE OneView

DHPE Storage integration Pack for VMware vCenter does not support MSA arrays

Answer : B

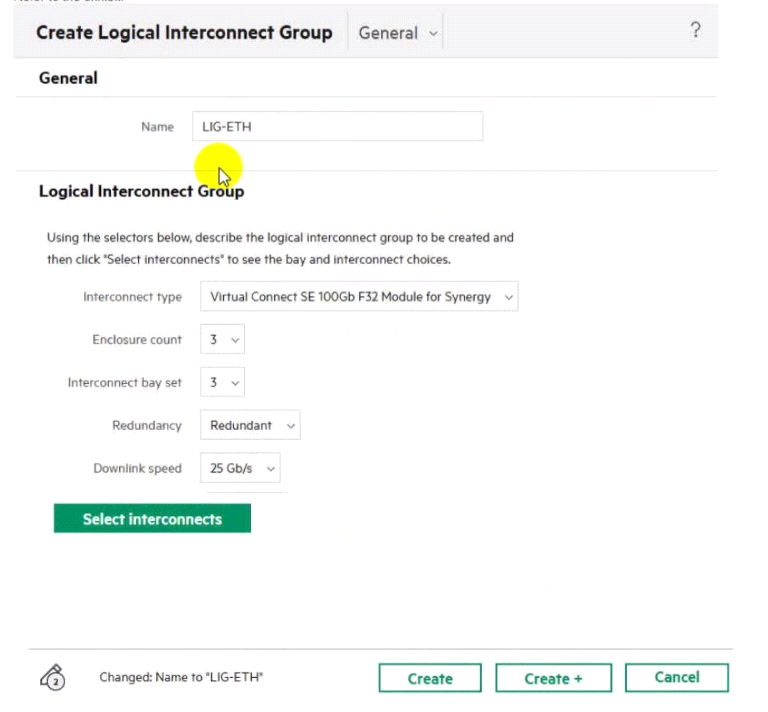

Question 7

Your customer has me following HPE Synergy setup

- Three frames fully populated with HPE Synergy 480 Gen10 Plus modules and 25Gb/s downlink speed formulating a single logical enclosure

- Two HPE Virtual Connect SE 100Gb F32 Module for Synergy

- Four HPE Synergy 50Gb interconnect Link Module

- Six HPE Synergy Virtual Connect SE 32Gb FC Modules

The customer needs to add a frame.

Which statement about the expansion of this setup is true?

AThe additional frame must have HPE Virtual Connect FC modules installed

BThe customer can grow the existing logical enclosure up to 5 frames

CThe customer has to create a new logical enclosure for the additional frame

DThe additional frame cannot have 12Gb SAS connection modules installed

Answer : C
