Dell EMC Dell XtremIO Design Achievement Exam Practice Test

Answer : A

When troubleshooting SAN performance problems, a key indicator of a physical issue is a high CRC (Cyclic Redundancy Check) error count. CRC errors are indicative of corrupt data packets during transmission, which often points to issues such as faulty cables, bad ports, or other physical problems in the network infrastructure. High CRC error counts can lead to retransmissions, reduced throughput, and overall degradation of SAN performance. Addressing the physical components associated with high CRC error counts is essential for restoring optimal SAN operations.

While the specific Dell XtremIO Design document was not available, general SAN troubleshooting guidelines and best practices indicate that CRC errors are a critical metric to monitor for physical connectivity issues1.

Additional resources on SAN performance troubleshooting can be found in the support documentation for the XtremIO Family on Dell's official website2.

=========================

Answer : A

The I/O elevator setting for use with XtremIO should be selected based on the operating system and the workload characteristics. For systems running Red Hat Enterprise Linux (RHEL) and connecting to XtremIO X2 storage arrays, the recommended I/O elevator settings are either noop or deadline. The noop scheduler is often recommended for SSDs and all-flash arrays like XtremIO because it is a simple FIFO queue that does not do any merging or reordering of I/O requests, which is unnecessary for SSDs due to their low latency and high performance1.

Dell EMC Ready Solutions for Oracle with XtremIO X2 document1.

Support documentation for XtremIO Family on Dell's official website2.

=========================

Answer : D

To consolidate the management of an XtremIO environment, the minimum number of XtremIO Management Server (XMS) machines required depends on the compatibility of the XMS with the various XtremIO Operating System (XIOS) versions present in the environment. A single XMS can manage multiple clusters as long as the XIOS versions are within the same major release family or are compatible with the XMS version.

Given the XIOS versions listed:

Two clusters running XIOS 4.0.2-80

Two clusters running XIOS 4.0.4-41

Two clusters running XIOS 4.0.25-27

Two XtremIO X2 clusters running XIOS 6.0.1-27_X2

All the clusters running XIOS version 4.x can be managed by a single XMS because they belong to the same major release family. The XtremIO X2 clusters running XIOS 6.0.1-27_X2 would typically require a separate XMS that supports the 6.x family. However, it is possible for a single XMS to manage both 4.x and 6.x clusters if the XMS version is compatible with both, which is often the case with newer XMS versions that support a wider range of XIOS versions.

Therefore, the minimum number of XMS machines required to manage all the listed clusters, assuming compatibility, is one.

Dell community discussions on vXMS version compatibility1.

Introduction to XtremIO X2 Storage Array document, which may include details on XMS and XIOS compatibility2.

XtremIO Bulletin Volume I-A 2022 for XIOS and XMS version guidelines3.

Answer : D

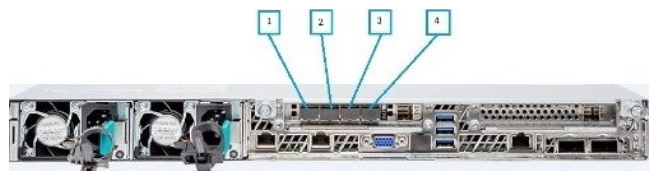

To maximize the connectivity between Storage Controllers and Fibre Channel switches, all available ports should be utilized. This ensures redundancy and maximizes throughput. The exhibit provided shows a Storage Controller with four ports labeled 1, 2, 3, and 4. Without specific design documents, the general best practice is to use all available ports for such connections, assuming the ports are configured for Fibre Channel traffic and the infrastructure supports it.

General best practices for Fibre Channel connectivity and port usage are discussed in various Dell EMC documents, such as the ''Introduction to XtremIO X2 Storage Array'' and ''Configuring Fibre Channel Storage Arrays'' documents12.

Specific port configurations and their usage would be detailed in the Dell XtremIO Design documents, which would provide definitive guidance on which ports to use for connecting to Fibre Channel switches.

Answer : D

The Dell EMC XtremIO X2 Storage Array uses Data at Rest Encryption (D@RE) to encrypt data. This encryption occurs on the Self Encrypting Drives (SEDs) within the Data Availability Enclosures (DAE). The DAEs house the physical drives where the actual data is stored and encrypted1.

Introduction to Dell EMC XtremIO X2 Storage Array document2.

Dell EMC XtremIO v6.3 document1.

Answer : C

In the context of Dell XtremIO storage arrays and their interaction with host systems such as Solaris, flow control is a network feature that manages data transmission and helps prevent packet loss when network congestion occurs. Enabling flow control on Solaris when it's connected to XtremIO arrays can be crucial for maintaining data integrity and ensuring smooth communication between the host and the storage system.

The Dell EMC Host Connectivity Guide for Oracle Solaris provides detailed instructions and best practices for configuring Solaris systems that are connected to Dell EMC storage arrays, including XtremIO1. While the document does not explicitly mention the setting to ''enable flow control,'' it is generally recommended to enable flow control in enterprise environments to manage data flow effectively and to prevent data loss or corruption during peak loads or network issues.

Enabling flow control can help in managing the pace at which data packets are sent, allowing the receiving device to handle the incoming data without being overwhelmed. This is particularly important in high-performance environments where XtremIO arrays are used, as they often handle large volumes of data transfers.

In summary, enabling flow control is a recommended practice for Solaris specific configurations when interfacing with Dell XtremIO storage arrays to ensure data transfer reliability and system stability.

Answer : C

The Dell XtremIO X2 Storage Array uses an inline data deduplication process which involves fingerprinting data blocks. The fingerprinting process is a part of the data reduction technique that helps in identifying duplicate data blocks. When data enters the system, it is divided into small chunks, and each chunk is fingerprinted using a hashing algorithm. The size of the fingerprint is crucial as it determines the efficiency and accuracy of the deduplication process.

The specific bit size of the fingerprint created by the algorithm used by XtremIO is 256 bits. This information is derived from the detailed descriptions of the system's architecture and operation as provided in the Dell EMC XtremIO X2 Storage Array documentation1. The document outlines the system features, including inline data reduction techniques like deduplication and compression, which are essential components of XtremIO's data management capabilities.

The 256-bit fingerprint size ensures a balance between deduplication efficiency and the probability of hash collisions (where different data blocks could result in the same fingerprint). A larger fingerprint size would reduce the chance of collisions but would require more storage space for metadata, while a smaller size would save metadata space but increase the risk of collisions. Therefore, the 256-bit size is a strategic choice for the XtremIO system's deduplication process.

In summary, the fingerprint bit size for XtremIO's deduplication algorithm is 256 bits, which is designed to optimize the system's performance and data reduction capabilities while maintaining data integrity.
